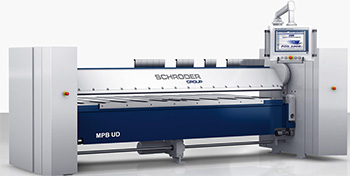

MOOTTOROITU KANTTIKONE MPB UD

The MPB Up’n Down combines high-precision mechanics with state-of-the-art and future-geared control technology.

Kategoria:

Kuvaus



MPB UD

The MPB Up’n Down combines high-precision mechanics with state-of-the-art and future-geared control technology.

Details MPB UD

  • Up’n Down folding beam, automatically controlled by POS 2000 Professional
  • Servoconverter-controlled drives for
    • folding beam
    • clamping beam
    • back gauge
    • folding beam adjustment
  • POS 2000-Professional control
  • graphic touch screen on swivel-mounted panel
  • 15̏ TFT touch screen colour display
  • USB interface
  • Windows-XP technology
  • Product representation by means of freehand drawing
  • Automatic calculation of bending sequence
  • VF-Technology (Virtual Folding) for simulating the folding sequence
  • Extensive and unlimited expandable library for Profiles (products), material and tools
  • Automatically calculation of cutting length
  • Maßgenaue Biegesimulation
  • Zoom-Funktion
  • Geschwindigkeit der CNC-Achsen frei skalierbar, dadurch Optimierung von Biegequalität und Geschwindigkeit
  • Positioning gauge 10 – 2400, 10 – 3200 or 10 – 4000 mm, U-shape with sectors incl. pneumatic pop-up gauge fingers and lateral angle gauge
  • 2-beam light barrier protection to the front at operation from the rear
  • Motorized folding beam adjustment 160 mm
  • 1 piece folding blade (10, 15 or 25 mm), 1100 N/mm²
  • Sharp-nose blade 30°, R1.5, 1100 N/mm²
  • Bottom beam blade 20 mm, R1.5, 45° with grooves, 1100 N/mm²
  • Footswitch
  • 2nd footswitch for operation from the rear
  • Anchor plates incl. Dowels

Technical Data

type capacity useful
length
clamping
beam
stroke
adj.
folding
beam
drive power
clamping
beam
drive power
folding
beam
[mm] [mm] [mm] [mm] [kW] [kW]
2500×2,5 2,50 2520 160 160 1,1 2 x 1,5
3200×2,0 2,00 3220 160 160 1,1 2 x 1,5
4000×1,75 1,75 4020 160 160 1,1 2 x 1,5
