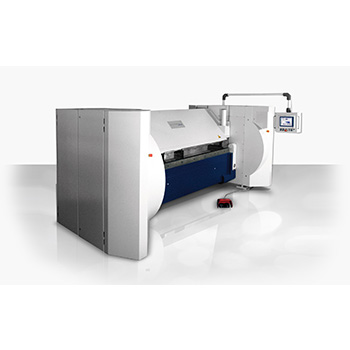

SCHRÖDER MOOTTOROITU KANTTIKONE MAK IV

MAK 4 is the powerful elephant among the Schröder Power Folders.
It’s able to fold 3000 mm up to 6mm and is designed for a hard,
double shift day.

Kuvaus

Details MAK 4

Servoconverter-controlled drives for
Folding beam
Clamping beam
Back gauge
POS 2000 Professional control:
PC with touch screen control on swivel-mounted panel
USB interface
Windows XP operating system
Extensive profile catalogue – unlimited extendable
Automatic cutting length calculation
Material and tool library
Folding simulation accurate to size
Zoom function
Infinitely variable CNC-axis speed
CNC-positioning control POS 2000 Progessional
10 – 1,000 mm with sheet support table
Clamping beam opening 400 mm
Folding beam drive, bilateral
Recirculated ball screws for clamping beam
Folding blade 20 mm
Carrier blade 25 mm
Sharp-nose blade 45° R 1.5
Piece counter
Tool set
Tools material strength 1,100 N/mm²
Footswitch
Anchor plates incl. dowels

Technical Data

type capacity useful length
clamping beam stroke
[mm] [mm] [mm]
1500×8,0 8,00 1520 400
2000×6,0 6,00 2020 400
2000×8,0 8,00 2020 400
2500×5,0 5,00 2520 400
2500×6,0 6,00 2520 400
2500×8,0 8,00 2520 400
3000×4,0 4,00 3020 400
3000×5,0 5,00 3020 400
3000×6,0 6,00 3020 400
3200×6,0 6,00 3220 400
4000×3,0 3,00 4020 400
4000×4,0 4,00 4020 400
4000×5,0 5,00 4020 400
5000×3,0 3,00 5020 400
type folding beam
adjustment bottom beam
adjustment drive power
clamping beam drive power
folding beam
[mm] [mm] [kW] [kW]
1500×8,0 80 80 2 x 3,0 2 x 4,0
2000×6,0 80 80 2 x 3,0 2 x 4,0
2000×8,0 80 80 2 x 3,0 2 x 4,0
2500×5,0 80 80 2 x 3,0 2 x 4,0
2500×6,0 80 80 2 x 3,0 2 x 4,0
2500×8,0 80 80 2 x 3,0 2 x 4,0
3000×4,0 80 80 2 x 3,0 2 x 4,0
3000×5,0 80 80 2 x 3,0 2 x 4,0
3000×6,0 80 80 2 x 3,0 2 x 4,0
3200×6,0 80 80 2 x 3,0 2 x 4,0
4000×3,0 80 80 2 x 3,0 2 x 4,0
4000×4,0 80 80 2 x 3,0 2 x 4,0
4000×5,0 80 80 2 x 3,0 2 x 4,0
5000×3,0 80 80 2 x 3,0 2 x 4,0
