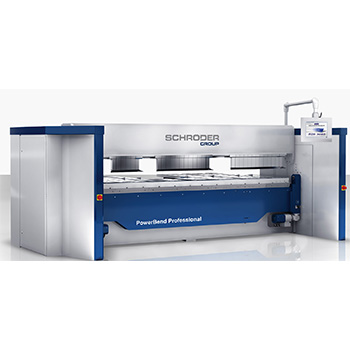

SCHRÖDER MOOTTOROITU KANTTIKONE PowerBend Professional

The PowerBend Professional swivel folding machine is the professional solution to your thin metal applications. This robust yet precise folder is ideal for continuous operation in shops throughout the metal forming industry.

Kuvaus

PowerBend Universal

The PowerBend Professional swivel folding machine is the professional solution to your thin metal applications. This robust yet precise folder is ideal for continuous operation in shops throughout the metal forming industry.

Details
• POS 2000 Professional control mounted on a swivel arm
• Dual folding beam drive (2 × 2.2 kW)
• Middle motor clamping beam drive 3.0 kW
• Hydraulic tool clamping on clamping beam
• Pneumatic tool clamping on folding beam
• Clamping beam stroke 350 mm
• Motorized folding beam adjustment 80 mm
• Motorized folding center adjustment ± 20 mm
• Sheet support table with gauge system 10-1,600 mm

Technical Data

Model Working length Sheet thickness 400 N/mm2 Machine length Machine width Machine height
[mm] [mm] [mm] [mm] [mm]
2,000×4.0 2,040 4.00 3814 2563 1610
2,500×4.0 2,540 4.00 4314 2563 1610
3,200×3.0 3,240 3.00 5014 2563 1610
4,000×2.5 4,040 2.5 5814 2563 1610

Clamping beam
Model Geometry Stroke Drive power Speed
[°] [mm] [kW] [mm/s]
2,000×4.0 48 (180) 350 3/5.5/2 x 2.2 20 (46/65)
2,500×4.0 48 (180) 350 3/5.5/2 x 2.2 20 (46/65)
3,200×3.0 48 (180) 350 3/5.5/2 x 2.2 20 (46/65)
4,000×2.5 48 (180) 350 3/5.5/2 x 2.2 20 (46/65)

Folding beam
Model Drive power Speed Folding beam adjustment Folding center adjustment
[kW] [°/s] [mm] [mm]
2,000×4.0 2 x 2.2 90 80 (160) ± 20
2,500×4.0 2 x 2.2 90 80 (160) ± 20
3,200×3.0 2 x 2.2 90 80 (160) ± 20
4,000×2.5 2 x 2.2 90 80 (160) ± 20

Software

POS 2000 Professional
the standard for industrial folding machines
The proven POS 2000 Professional makes programming a folding machine fast and comfortable. The desired program components can be selected from a comprehensive and expandable catalog, the angle and side dimensions are easily changed by pressing the monitor.

The control software displays exactly what the machine is doing: The folding machine, work piece, and tool are displayed schematically and updated for every bending step. Anyone who programs preparation of the work away from the machine can test the quality of their program using the bending simulation, which effectively avoids waste and delays during production.

The software not only controls the machine, but also offers assistance to the user: all of the necessary operator activities like turning, rotating, etc. are displayed for each bending step.

nanoTouch
the most clearly laid-out alphanumeric control

The latest software invention from Schröder Group and perfect for workshop and factory application: nano Touch is a modern alphanumeric control that serves as the standard software for the folding machines MAK II, MAK 3, MAK V, and MAKV S.

nano Touch controls the clamping beam and the folding beam using a path measurement system, and the motorized back stop is controlled via the digitally controlled frequency inverter. The user interface is clearly laid-out and combines easy-to-understand icons with text and numerical displays.

Tools & Options

• Up-and-Down folding beam
• Rotating clamping beam
• Several drive-, tool- and gauge options
