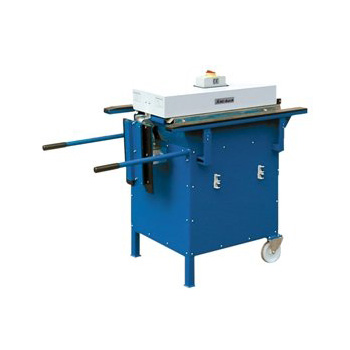

SCHLEBACH EPM 25

The purpose of profiling machine EPM 25 is to produce double standing seam profiles 25 from blanks or cut lengths in two passes

Kuvaus

The purpose of profiling machine EPM 25 is to produce double standing seam profiles 25 from blanks or cut lengths in two passes. It is designed as a universal machine for the entry-level users or as a backup machine for onsite work. The profiling machine EPM 25 is an ideal choice for short, conical or pointed panels.

A single sided run can produce conical, oblique panels or standing seam sheets from a centre to centre distance of 50mm.The length of the shortest panel is approx. 300mm. The production rate is 11 metres per minute.

The profiling unit (tie-bars) with 7 shaping levels are supplied on a torsion-proof steel frame. The strip or sheet material is guided by lateral infeed guides on ball-bearings on the fixed as well as the adjustable side. These are adjustable to set the outer edges of the profile. The profile rollers are made of high quality special steel and surface treated. This special treatment provides the rollers with a high level of corrosion and wear protection. The bearings of the upper profile rollers are have resilient mounts to allow them to adapt to the material thickness. This ensures that impression-free and low-wear production of the panels. It is easily moved and quickly set up due to its low weight and the use of plug-in carrying handles. This ensures a wide range of applications for the machine during operations and on the construction site.

The profile shapers drive is turned on at the main switch and the blanks or cut lengths with a running drive manually and separately in two passes, one for each side of the profile. When you have completed the work, turn the machine off. The infeed guides can be folded down and use the plug-in carrying handles to transport the machine.
