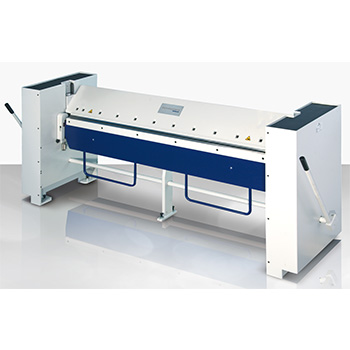

SCHRÖDER KÄSIKANTTIKONE AKV

The most powerful machine among the manual folders. The AKV concept is based on a robust, generously dimensioned all-steel design. The quality selected for the rolled sections lends stability and ensures long service life for the AKV.

Kategoriat: ,

Kuvaus

AKV

The most powerful machine among the manual folders. The AKV concept is based on a robust, generously dimensioned all-steel design. The quality selected for the rolled sections lends stability and ensures long service life for the AKV.
Details

  • 45° clamping beam with 50 mm free space
  • Folding blades 10 and 25 mm (from AKV 3000: 15 and 25 mm)
  • Sharp-nose blade 20°, sharp, foot width 35 mm, clearance 8 mm
    optional
    Sharp-nose blade 45°, sharp, foot width 27 mm, clearance 8 mm
    Direct screwed to clamping beam
  • Central support for bottom beam
  • Adjustable angle gauge 0 – 180°
  • Folding beam adjustment
  • Toolset
type capacity useful length clamping beam stroke folding beam adjustment
[mm] [mm] [mm] [mm]
1000×3,0 3,00 1020 110 30
1500×2,5 2,50 1520 110 30
2000×2,0 2,00 2020 110 30
2500×1,5 1,50 2520 110 30
3000×1,25 1,25 3020 110 30
3200×1,25 1,25 3220 110 30
4000×1,0 1,00 4020 110 30
